PERFOMANCE AND SAFETY

1.1 Litre High Powered SOHC gasoline engine delivers 65 ps at 5500 rpm. A comprehensive safety system comprises dual side impact bars, High Mounted Stop Lamp, 8 inches booster brakes, Child Safety locks, 2.5 mph body colour bumpers makes it a perfect car for day to day drive.

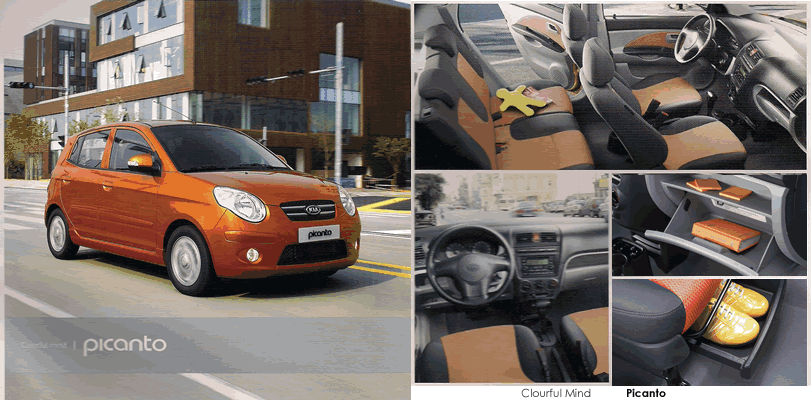

SPACE

The Picanto comes with a vast and practical space that gives extra headroom, shoulder room and legroom to give you optimal comfort. Add to this are 19 storage areas for your valuables. It's double folding rear seat can provide luggage space from 157 Litre to 882 Litre like a compact MPV-like functinality.

OPTIONS AND FEATURES

Picanto comes with options of 9 attractive colours with features like Power and Tilt steering. Front power windows, Central locking, Air conditioner with Micro Air filters, Radio Cassette Player with four speakers, Rear Spoiler and battery saver.

KEY FEATURES

Picanto 1.1L EX, Aircindition, POWER Steering with TILT, Radio+ Cassette, Front Power Window, TACHOMETER+ DIGITAL CLOCK, Luggage Net, Bodycolor Bumper, 14'' STEEL+165/60R14, O/SIDE MIRROR - LEVER TYPE, FFL, Sun Glass Holder, Rear Speaker, BACK SHELF COVER + OTHER STND EQIPMENT.

Specification

Engine

Type		1.1 Gasoline
General	Displacement (cc)	1,086
	Bore x stroke (mm)	67×77
	Compression ratio	10.1
	Max power (ps/rpm)	65/5500
	Max. torque (kg.m/rpm)	9.9/2800
Max engine speed (rpm)		6000
Engine type		nline 4 cylinders
Fuel injection system		Multi-point Fuel Injection
Camshaft and Valve system		SOHC (12 valves)
Cooling system		Water (Liquid)
Emission control system		Controlled by ECU
Lubrication system		Compulsory Feeding
Electric system	Battery	40 AH
	Alternator	13.5V 70A
	Starter	12V 0.9KW
Lubricant oil capacity (liter)		3.0
Cooling capacity (liter)		1.7

* Technical Information on1.0 Gasoline and 1.1 Diesel Engine will be updated in the future.

Drive Train

Transmission Type		Manual	Automatic
Speed		5	4
General		Mechanical	Electronic
Gear ratio	1st	3.545	2.914
	2nd	1.894	1.525
	3rd	1.192	1.000
	4th	0.853	0.725
	5th	0.719	-
	Reverse	3.636	2.642
Final gear ratio		4.437	3.977
Lubricant oil capacity (liter)		1.9	5.2
Max speed (kph)		154	144
Acceleration (sec)	0 → 100kph	15.1	17.9
Acceleration (sec)	60 → 100kph	14.5	11.0
Brake performance (100 → 0kph)	Without ABS	43.0
Brake performance (100 → 0kph)	With ABS	41.3

Suspension

Type	Independent
Front	McPherson Strut with Stabilizer
Rear	Coupled Torsion Beam Axle
Shock Absorber	Oil & Coil Spring

Steering Wheel

Steering Type	Manual	Power
Type	Integral Rack & Pinion
Steering diameters	370 mm
Power source	Mechanical	Hydraulic
Overall steering gear ratio	18.5	14.0
Steering wheel turn(lock to lock)	3.7	2.8

Wheel & Tire

Wheel size	Steel	4B×13, 5J×14
Wheel size	Alloy	4.5J×13, 5J×14, 5.5J*×15
Tire	Carbon	155/70R13, 165/60R14
Tire	Silica	155/R13, 165/R14, 175/R15
Spare Tire	Temporary	T105/70R14
Spare Tire	Tire Mobile Kit	EU Countries only

* W/Europe and EU countries are available silica tires and tire mobility kit.

Brakes

Front brake type & Diameter* Thickness (㎜)		Disc & 241×18
Rear brake type & Diameter* Thickness (㎜)		Drum & 180(7") - Without ABS
Rear brake type & Diameter* Thickness (㎜)		Disc & 234×10 - With ABS
Booster	Type	Vacuum assisted Single
	Diameter (㎜)	224 (8")
	Thickness (㎜)	75
	Booster ratio	4.5
Master cylinder	Type	Tandem (AS/AS) - Without ABS, Tandem (AS/TC) - With ABS
Master cylinder	Diameter (㎜)	20.64
Parking Brake Type		Mechanical Brake Operating on Rear Wheels

Fuel Consumption

Transmission Type		Manual	Automatic
Europe	Urban (L/100km)	6.1	7.4
	Extra Urban (L/100km)	4.3	4.8
	Combined (L/100km)	4.9	5.8
	CO2 Emission (g/km)	119	138
General	Constant 60kph (km/L)	-	-
General	Constant 100kph (km/L)	-	-

* Europe : 155/70R13 or 165/60R14 silica tire, General : 155/70R13 tire

Fuel Tank Capacity

Material	Plastic (HDPE)
Fuel tank capacity	35 ℓ

Weight

Transmission Type		Manual	Automatic
Curb weight (kg)	Maximum	928	944
	Minimum	852	872
Gross weight (kg)		1350
Trailer weight with brake (kg)		700	400

Dimensions

Exterior (mm)	Maximum		3495
	Overall width		1595
	Overall height		1480
	Wheel Base		2370
	Wheel tread	Front	1400
	Wheel tread	Rear	1385
	Over hang	Front	645
	Over hang	Rear	480
Interior (㎜)	Interior	Length	1790
		Width	1322
		Height	1227
	Leg room	Front	1041
	Leg room	Rear	872
	Head room	Front	1003
	Head room	Rear	966
	Shoulder room	Front	1290
	Shoulder room	Rear	1292
	Hip room	Front	1224
	Hip room	Rear	1232
Minimum ground clearance (㎜)			145
Minimum turning circle radius (m)			4.6

Boot Capacity

	Seat up	Seat Folding
	Seat up	Lower window / Full
Cargo area (SAE / VDA)	220/157	988-575 / 882
